Proxmox vlan config

Diving into the world of Proxmox to configure VLANs? You’re in the right place. Whether setting up a virtual lab, enhancing security, or streamlining network performance, understanding how to manage VLANs in Proxmox effectively is key. This article will walk you through each step, ensuring you can leverage the full power of VLANs to optimize your network’s efficiency and security. Let’s get started and make VLAN configuration in Proxmox a breeze.

What is a VLAN?

A VLAN, or Virtual Local Area Network, is a technology that lets you split a single physical network into multiple virtual networks. Each VLAN acts as its separate network, allowing devices to communicate as if they were on the same physical network, even if they’re not. This setup is great for organizing your network into smaller, more manageable sections, enhancing security, and improving network performance.

How does Proxmox Server set up the network on a node?

Proxmox Server uses a model where each node can have multiple network interfaces, both physical and virtual. You typically create bridges when setting up the network on a Proxmox node. These bridges act as virtual switches to which both your physical and virtual machine (VM) network interfaces connect, enabling communication between VMs and between VMs and the outside world.

Creating VLAN-Aware Linux Bridges

To set up VLANs in Proxmox, you must first create VLAN-aware Linux bridges. A Linux bridge works like a virtual switch that connects your VMs to the physical network. Making this bridge, VLAN-aware allows it to understand VLAN tags and segregate traffic accordingly.

  1. Open the Proxmox web interface.
  2. Navigate to “System” > “Network”.
  3. Create a new Linux bridge and mark the “VLAN aware” checkbox.
  4. Reboot the Proxmox host.

In the image below, you notice Proxmox created two physical network interfaces, eno1 and eno2. vmbr0 is the Linux bridge.

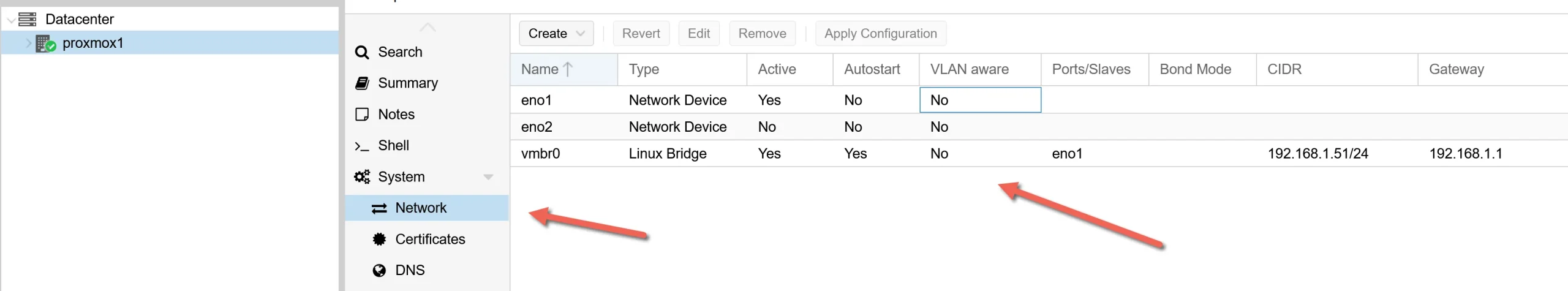

Proxmox bridge vlan aware

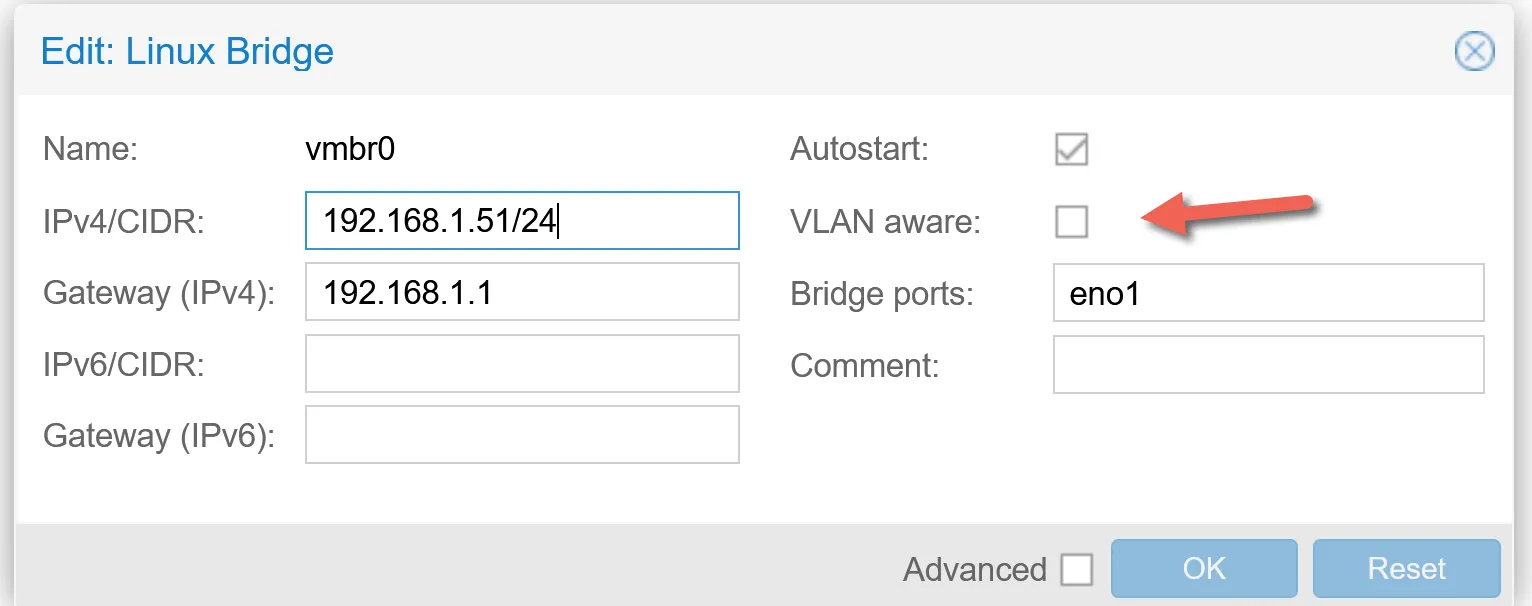

Highlight the vmbr0 Linux Bridge and click ‘edit’. You need to mark the checkbox ‘VLAN aware’ and then click ‘Apply Configuration.’ That’s all. The Proxmox Server is ready for vLans. In this example, you also see the management IPv4 address of the Proxmox node and the Gateway. I didn’t use IPv6, so the fields are empty.

Proxmox linux bridge

If you want, you can go to the command line (shell) in the Proxmox WebGui or use Putty to check the configuration of the nic before you click ‘VLAN aware”

nano /etc/network/interfaces

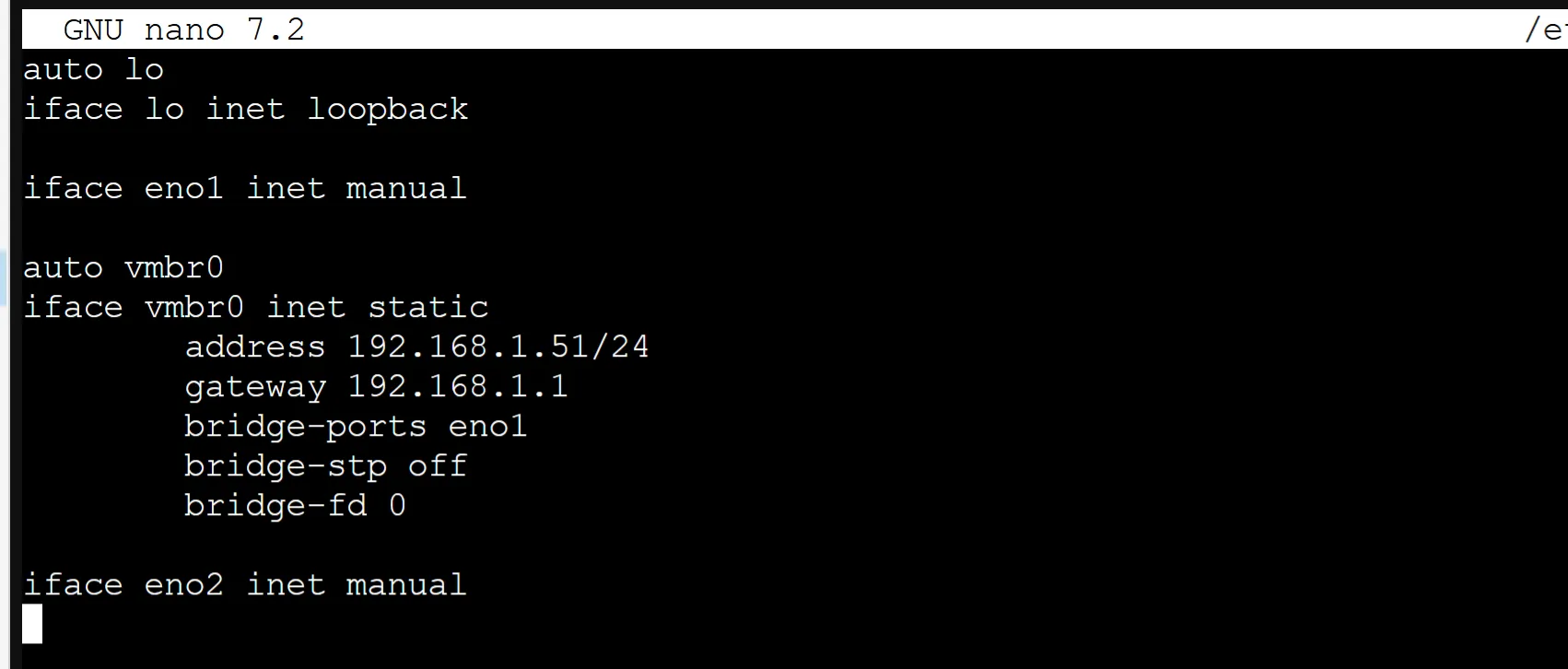

network interfaces before vlan aware

Below is the network interfaces after making the Linux bridge VLAN aware

network interfaces after vlan aware

Basically, Proxmox has now created a VLAN trunk for all possible VLANs from 2-4094. VLAN1 is for the native network. You are free to change the configured VLAN, for example to

bridge-vids 2,10,15,20,100

When you want to limit the bridge to allow traffic only from specific VLANs, you would use the bridge-vids parameter to specify the permitted VLAN IDs. The above example would indicate that only VLANs with IDs 2, 10, 15, 20, and 100 are allowed on the bridge.

Integrating Proxmox Network with Physical Networks

Once you’ve made your Linux bridge in Proxmox VLAN-aware, the next step is to ensure that your Proxmox network configuration works harmoniously with your physical network setup. This integration allows virtual machines (VMs) within Proxmox to communicate efficiently with devices outside the Proxmox environment, including the internet, other servers, and workstations on your network. Here’s how you can achieve this:

1. Understand Your Physical Network’s VLAN Configuration

Before integrating your Proxmox server with the physical network, it’s essential to understand your existing network’s VLAN setup clearly. This includes knowing the VLAN IDs, configuring your switches to handle VLANs, and which ports are tagged or untagged for specific VLANs.

2. Configure Physical Switch Ports

  • For Trunk Ports: Ensure the switch port connecting to your Proxmox server is configured as a trunk port. This port must be capable of carrying traffic for all VLANs you intend to use within Proxmox. You’ll need to allow the identical VLAN IDs on this trunk port as you have configured in Proxmox.
  • Firewall: Typically, you configure your VLANs on the firewall with policies on how they can communicate together. For most Firewalls, you can also set the IP addressing subnet for the VLans and enable DHCP for clients. In my opinion, it’s best to set VLANs at the Firewall level.

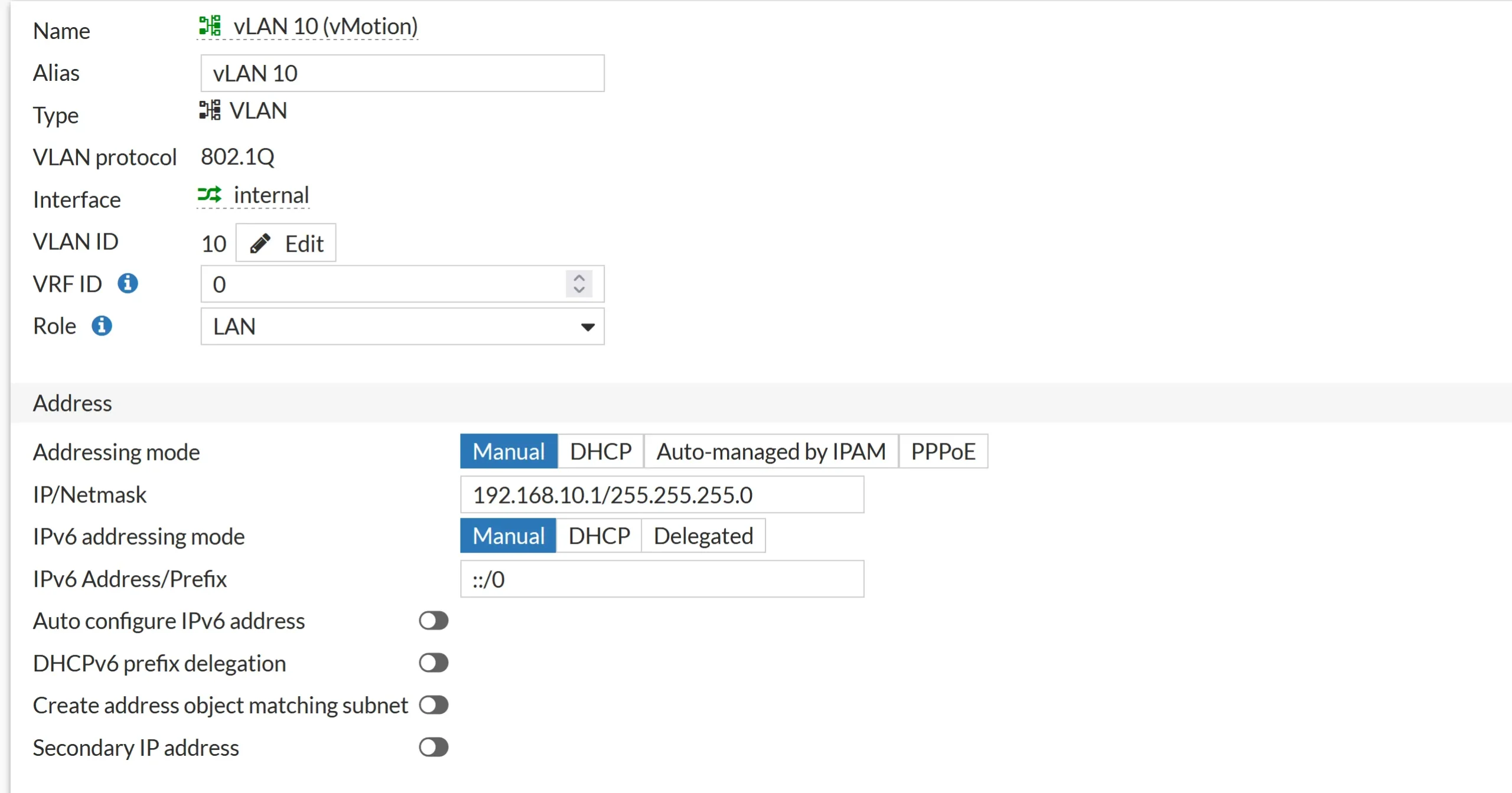

Below you see an example of a VLan configuration at a Fortigate firewall.

Fortigate vlan interface configuration

3. Match VLAN IDs

Ensure the VLAN IDs used in Proxmox match those configured on your physical switches. Inconsistencies between VLAN IDs can lead to communication failures. For instance, if a VM in Proxmox is tagged with VLAN 10, the physical switch port connected to the Proxmox server must also allow VLAN 10 traffic.

Renewed Server Selections: Amazon’s Best

This table presents a curated selection of top renewed servers available on Amazon across the UK, USA, Canada, and Germany

BrandModelBuy in USBuy in UKKaufe in Deutschland
DellPoweredge R710View on AmazonView on AmazonGehe zu Amazon
DellPoweredge R630View on AmazonView on AmazonGehe zu Amazon
HPEProLiant DL360 Gen10View on AmazonView on AmazonGehe zu Amazon
HPEProliant DL380 Gen 9View on AmazonView on AmazonGehe zu Amazon
HPEProliant ML350 Gen10View on AmazonView on AmazonGehe zu Amazon
SupermicroE300View on AmazonView on AmazonGehe zu Amazon

Configure VLANs on Virtual Machines

Assigning VLANs to virtual machines (VMs) in Proxmox VE is essential for network segmentation, enhancing security, and optimizing network traffic. Here’s how to directly assign VLANs to your VMs, ensuring they communicate effectively within their designated network segments.

Assign VLANs to VM Network Interfaces

  • Access Proxmox Web Interface: Log into the Proxmox VE web interface using your credentials.
  • Select Your VM: Navigate to the left panel, find the VM you want to configure and click on it to select.
  • Edit Network Interface:
  • Enter VLAN Tag:
  • Save Configuration: Click OK to save the changes. This action updates the VM’s network interface to use the specified VLAN tag for its traffic.

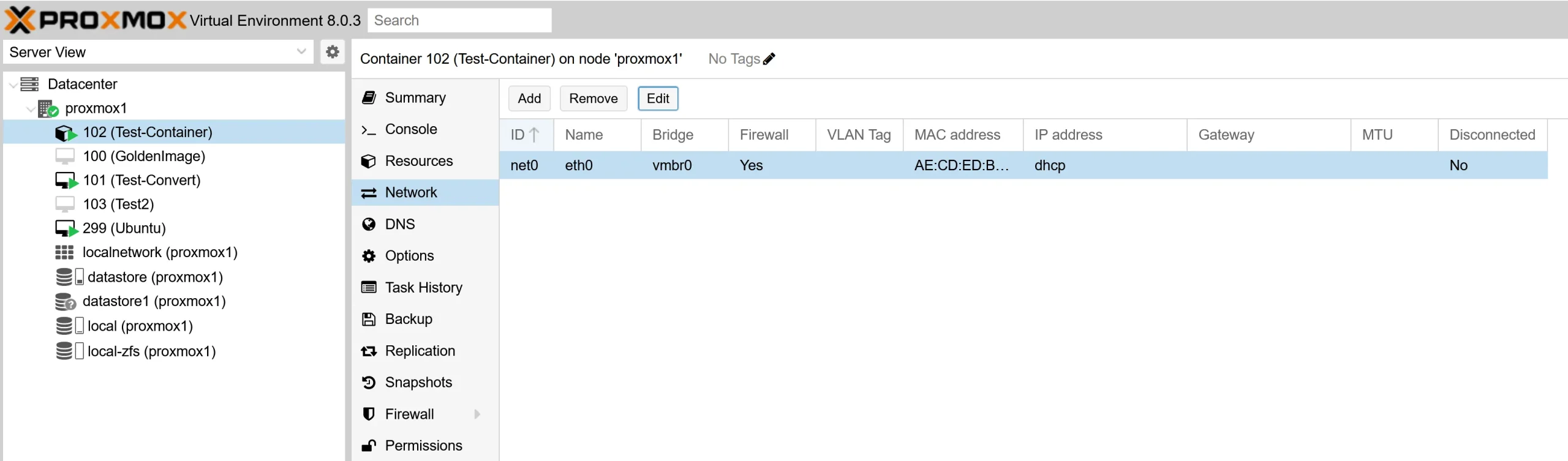

Setting Up VLANs on Virtual Machines

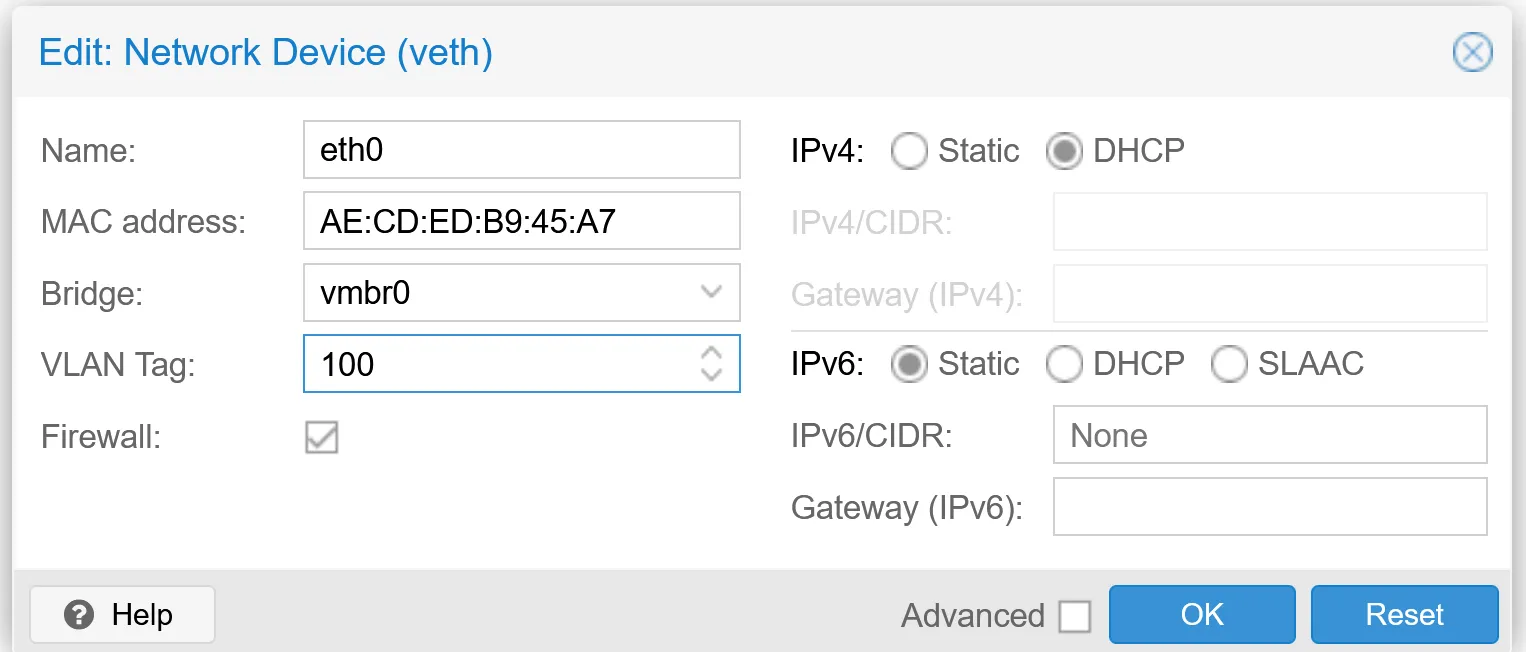

assign vlan id to VM

Configure Network Settings Inside the VM

After you’ve assigned a VLAN to the VM’s network interface, you might need to configure the network settings within the VM’s operating system to ensure it correctly uses the designated VLAN’s network configuration:

This step is not necessary when you configured DHCP for your VLAN ID.

  • Log into the VM: Access the VM’s console or connect via SSH, depending on your setup and preferences.
  • Set IP Configuration: Configure the VM’s network interface with an IP address, subnet mask, and default gateway appropriate for its assigned VLAN. The exact steps depend on the VM’s operating system. For Linux VMs, this usually involves editing. /etc/network/interfaces. For Windows VMs, you’ll adjust the settings through the Control Panel or Settings app.

Testing and Verification

  • Ping Test: Try pinging devices or servers within the same VLAN from the VM to test connectivity.
  • Access Resources: Attempt to access network resources allocated for that VLAN to ensure proper communication.

Troubleshooting VLAN network configuration Issues on Proxmox

Encountering issues while configuring VLANs in Proxmox can be frustrating, but most problems can be resolved by following a systematic approach. Here are steps to diagnose and fix VLAN network configuration issues:

Verify VLAN Configuration

  • Check VLAN IDs: Ensure that the VLAN IDs used in your VM configurations match those configured on your physical switches and VLAN-aware bridges. A mismatch can lead to communication failures.
  • Review Bridge Configuration: Confirm that the bridge is configured to be VLAN-aware and that the settings are correctly applied. Use the Proxmox web interface or inspect /etc/network/interfaces for manual configurations.

Check Physical Switch Settings

  • Port Configuration: Confirm that the switch ports connected to your Proxmox server are correctly configured for the expected VLANs. This includes setting up access or trunk modes as required.
  • VLAN Existence: Verify that the VLANs you’re using in Proxmox are defined on your switches and that the ports are correctly assigned to these VLANs.

Test Network Connectivity

  • Ping Tests: Conduct ping tests from your VMs to devices within the same VLAN and to the default gateway to check for connectivity issues.
  • Use Traceroute: Traceroute can help identify where the packets are being dropped or misrouted in the network.

Review Firewall and Security Settings

  • Check Firewall Rules: Ensure that firewall settings on both Proxmox and VMs are not blocking VLAN traffic. Sometimes, rules can inadvertently restrict traffic flow between VLANs.
  • Security Policies: Review any network security policies that might be preventing VLAN traffic from being routed correctly.


What are the security benefits of using VLANs?

VLANs enhance security by segmenting networks into smaller, isolated groups. This isolation helps prevent unauthorized access across different network segments, reduces the risk of data leakage, and limits the spread of attacks within a network.

What does VLAN aware do in Proxmox?

Making a bridge VLAN-aware in Proxmox allows it to understand and properly route traffic based on VLAN tags. This enables a single bridge to manage multiple VLANs, segregating traffic without needing separate physical interfaces for each VLAN, thus facilitating efficient network segmentation and management.

What is Proxmox VLAN configuration?

Proxmox VLAN configuration involves setting up VLANs on your network devices to manage network traffic within a Proxmox virtual environment efficiently.

Can VLANs in Proxmox improve network efficiency?

Yes, VLANs can significantly improve network efficiency in Proxmox by reducing broadcast traffic, segmenting the network into more manageable sections, and ensuring that network resources are allocated more effectively. This segmentation helps optimize performance and better manage traffic flows.

Where can I find support for Proxmox VLAN configuration?

You can seek assistance and guidance for Proxmox VLAN configuration through resources such as Proxmox Support Forum, online tutorials, and documentation provided by Proxmox

I would love to get some feedback from you. Was this article helpful? Please share your opinion with me in the comment section below. Or, if you prefer a more personal touch, feel free to email me directly at [email protected]. Your thoughts and insights are always appreciated. Additionally, you can connect with me on Reddit at Navigatetech.
